Westville Case Study:
Whole-house energy upgrade with Architect Gil Schalom in West Bridgford
The Project.
Located in West Bridgford, this impressive home renovation showcases the benefits of combining architectural vision with expert insulation installation. Designed and managed by architect Gil Schalom, the project was completed across two key phases, first improving internal comfort and then extending energy efficiency throughout the entire property.
The initial works in 2012 focused on the rear wing, upgrading thermal performance through the installation of internal wall insulation, 300mm loft insulation, an airtightness membrane beneath the suspended floor, and high performance insulation around window reveals. The results were immediate, transforming the area into the warmest and most comfortable part of the home.

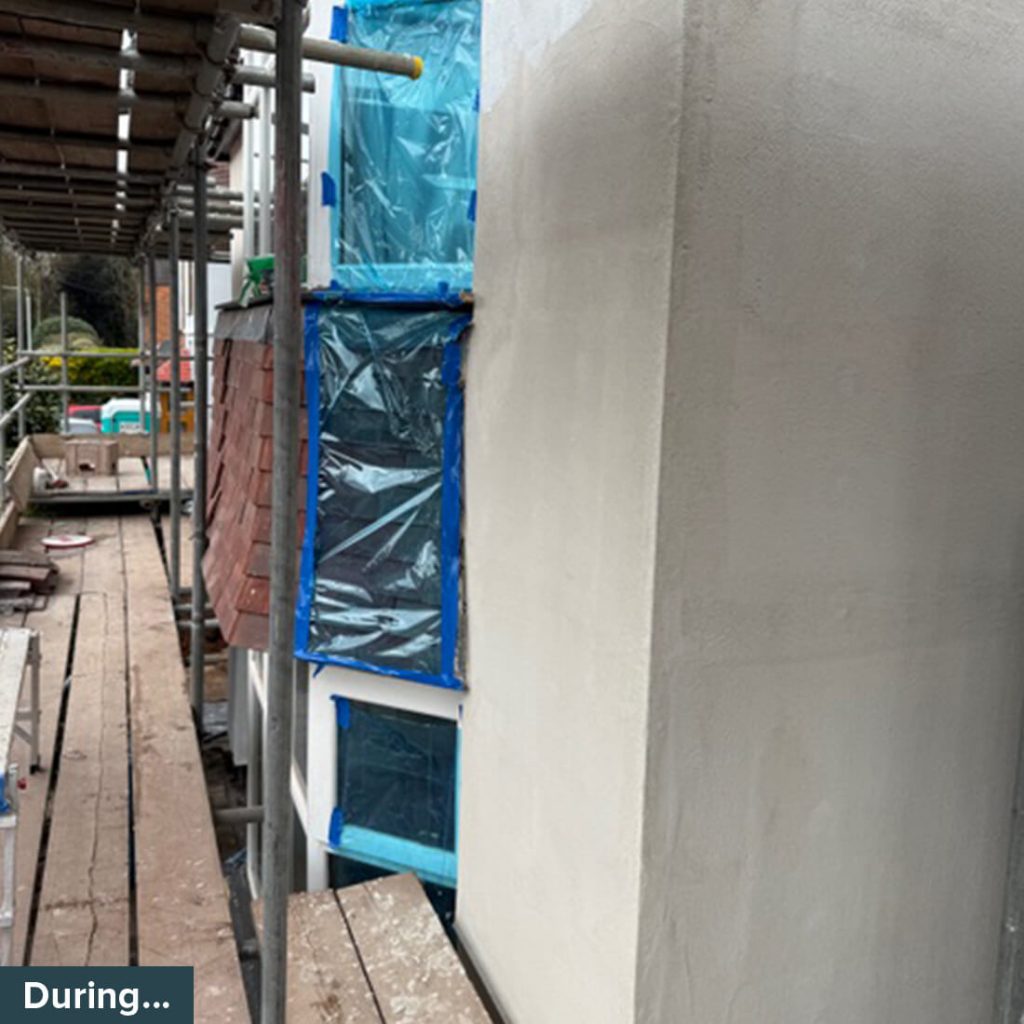

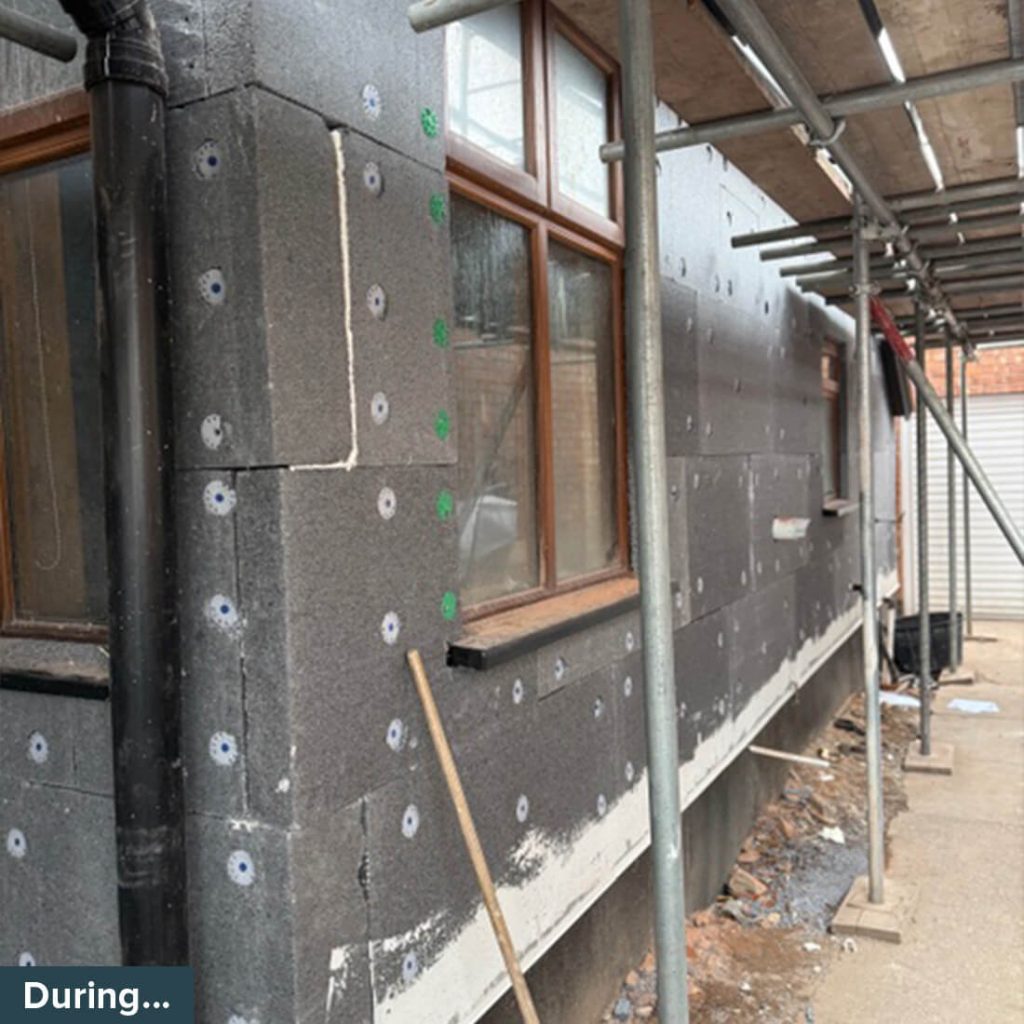

Phase 2 took place in 2024–2025 working on the property exterior for which Westville delivered a full external wall insulation system. For maximum efficiency, 200mm insulation boards were used where possible and 100mm boards where space was restricted.

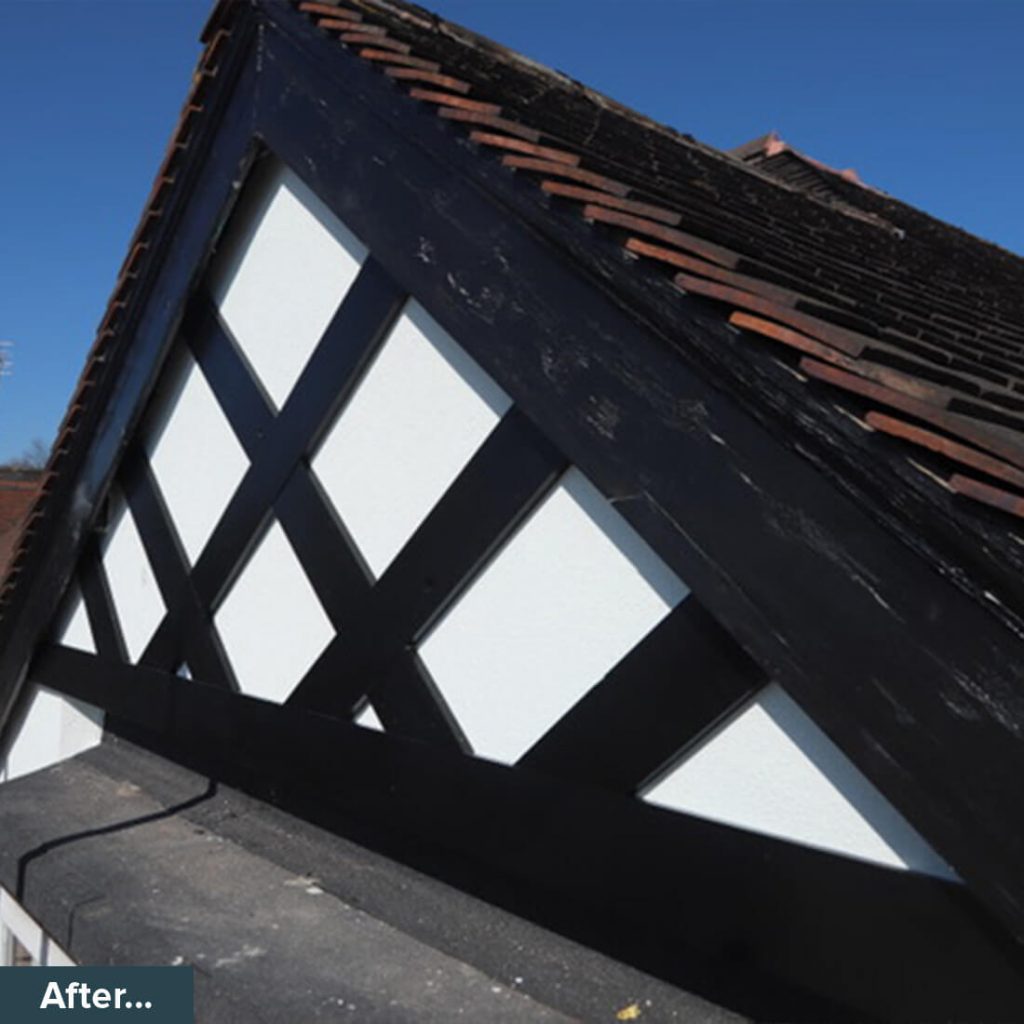

It was necessary to excavate for below ground insulation, adjust the drainage, add insulated fascias and soffits, plus reset the timber windows to optimise performance. A replacement flat roof was added to the front bay to interface seamlessly with the EWI and a decorative timber lattice feature, replicating the original one, was installed on the gable over the EWI.
The Challenges.

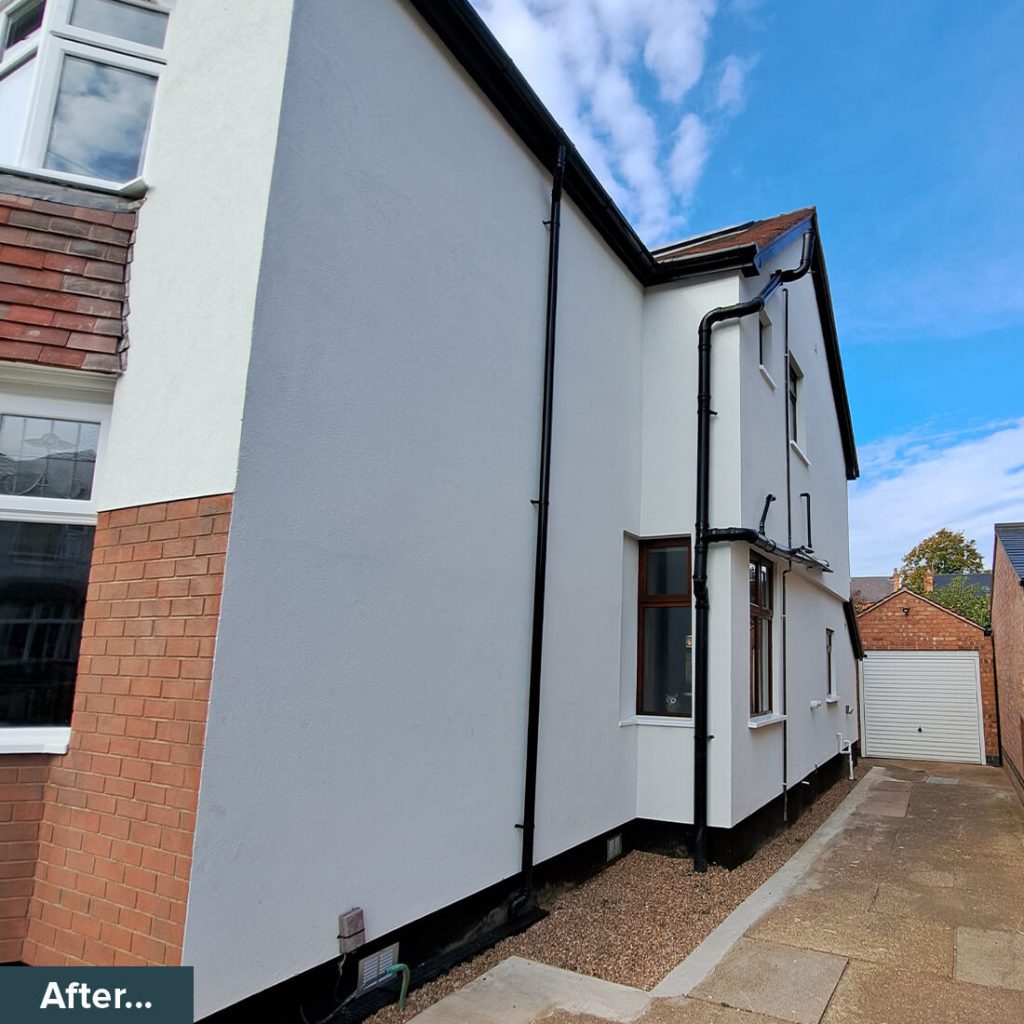

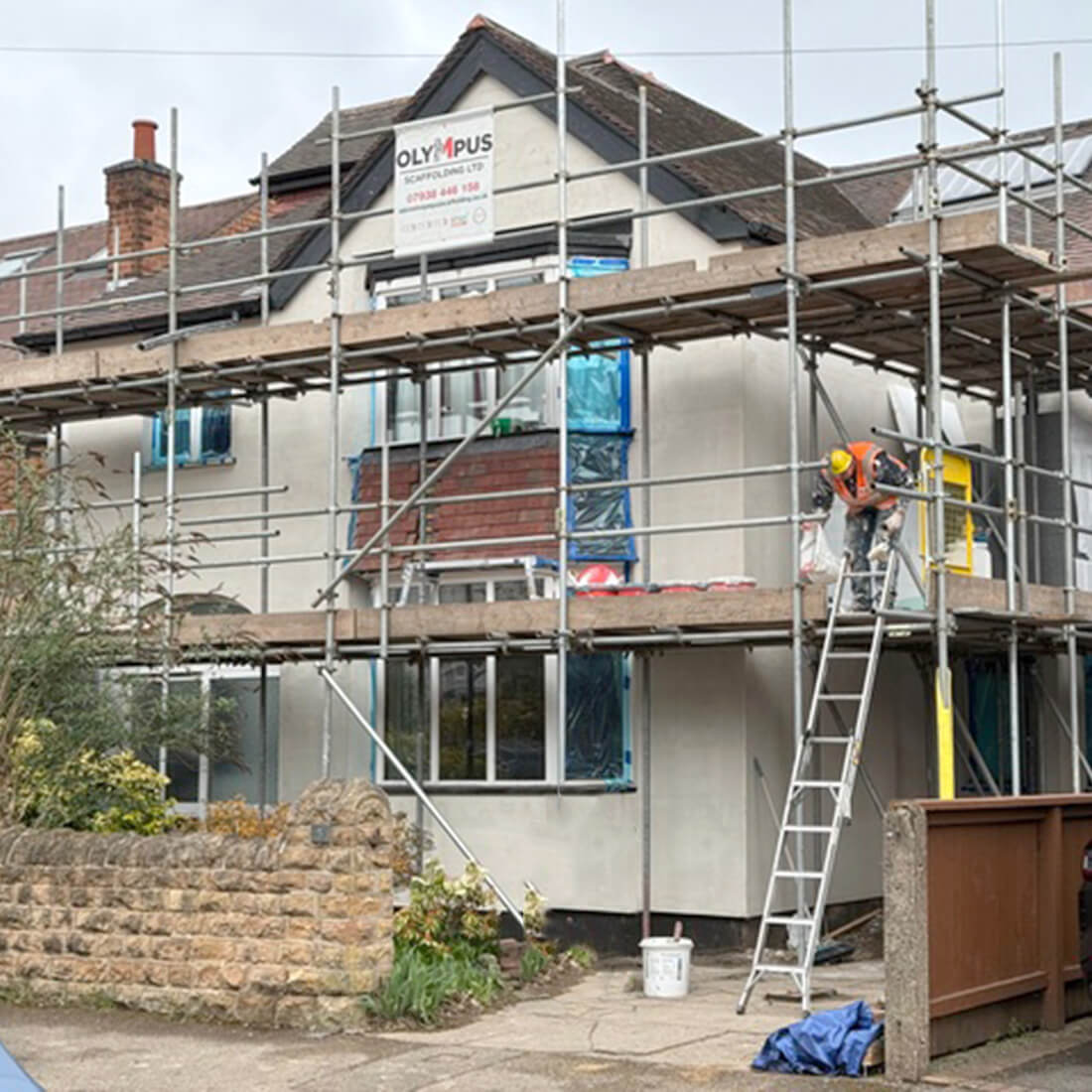

Working around an existing, high-quality property required exceptional care and attention to detail. Tight driveways on either side meant insulation thickness had to be carefully adjusted to maintain access while ensuring full coverage.

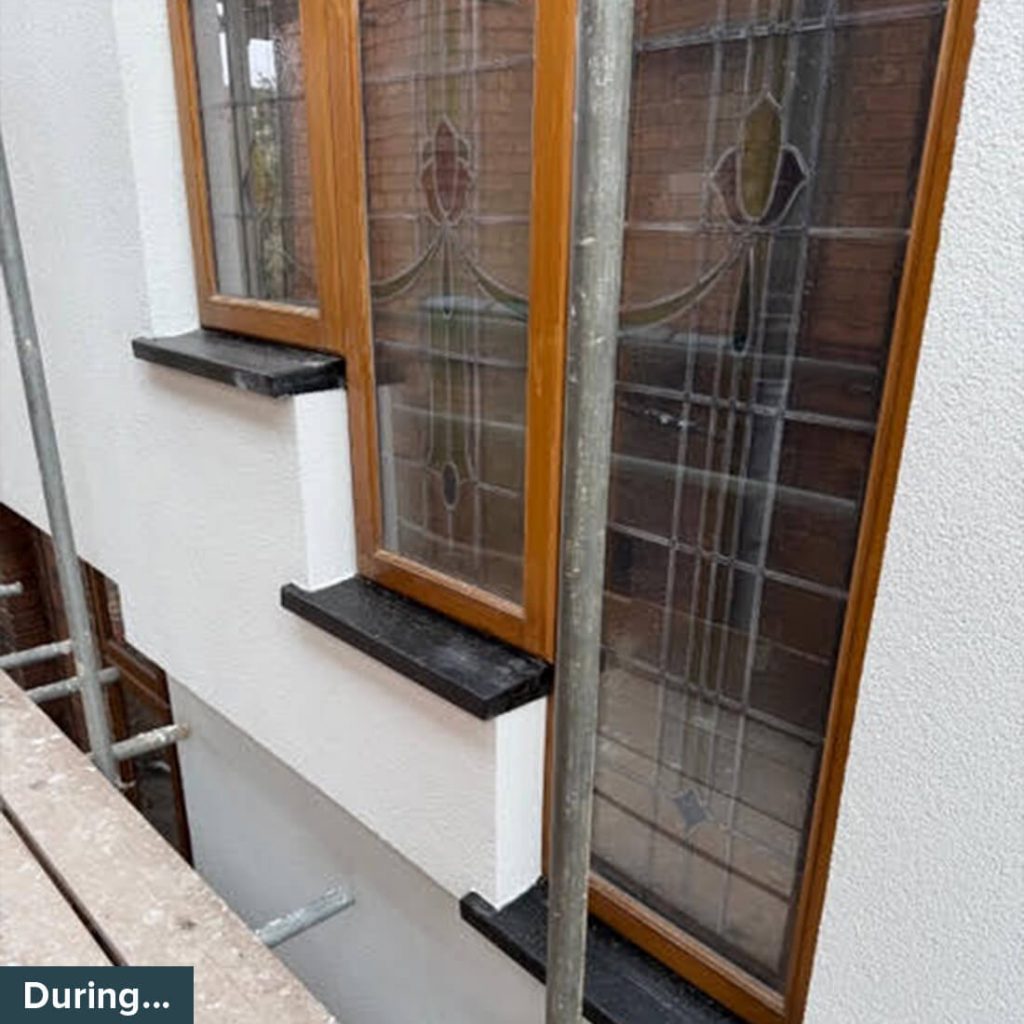

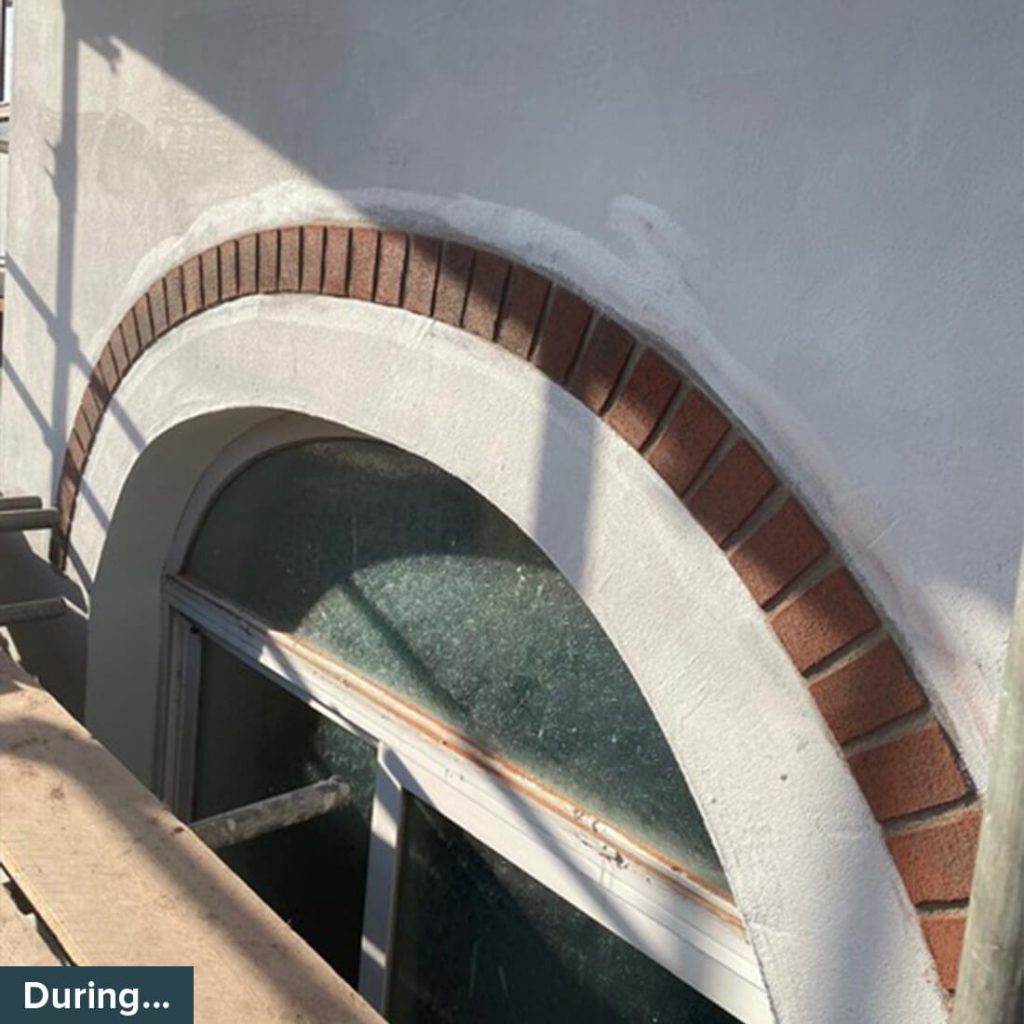

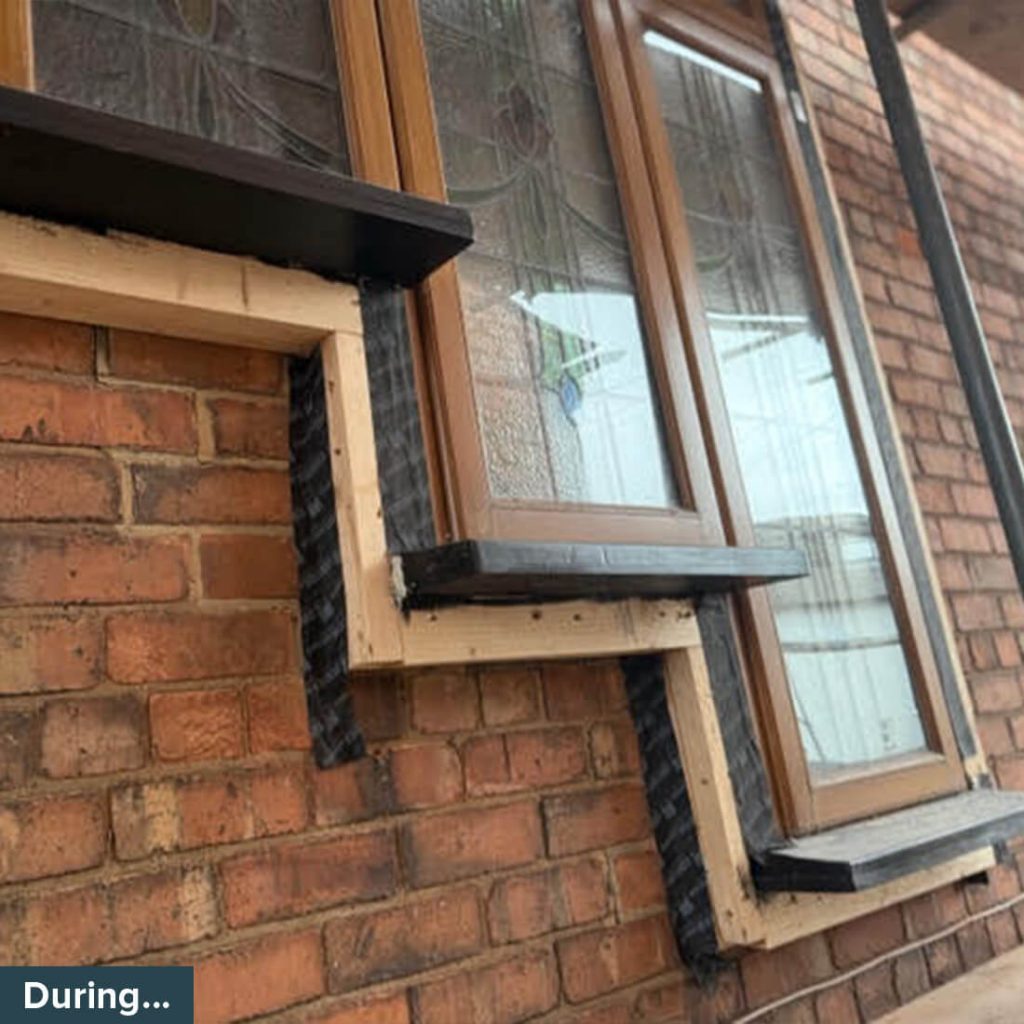

Each window and feature was individually detailed to eliminate cold bridging and preserve the architectural character. Coordination with the architect ensured every modification, from drainage adjustments to roof overhang extensions, was executed seamlessly and without compromise.
Westville enhancing comfort and efficiency through expert insulation and craftsmanship
Spotlight On Our People...
Paul Johnson & Kyle Lake
EWI Installers
Installation was completed by Paul Johnson and Kyle Lake, both experienced and meticulous members of the Westville team.
Their professionalism and pride in their work were evident throughout, ensuring every corner, reveal, and finish met the highest standard. The architect described their approach as efficient, courteous, and highly skilled, noting how their expertise added significant value to the final result.
Results.

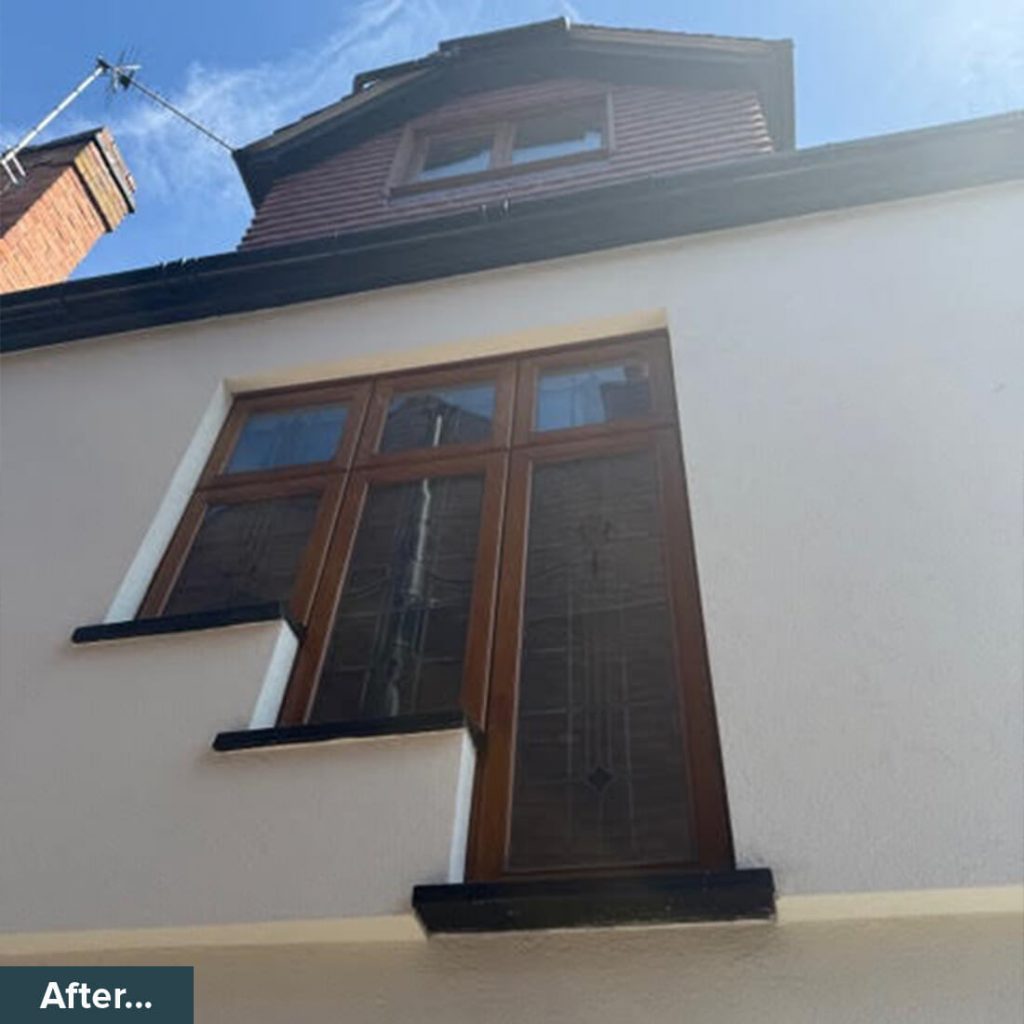

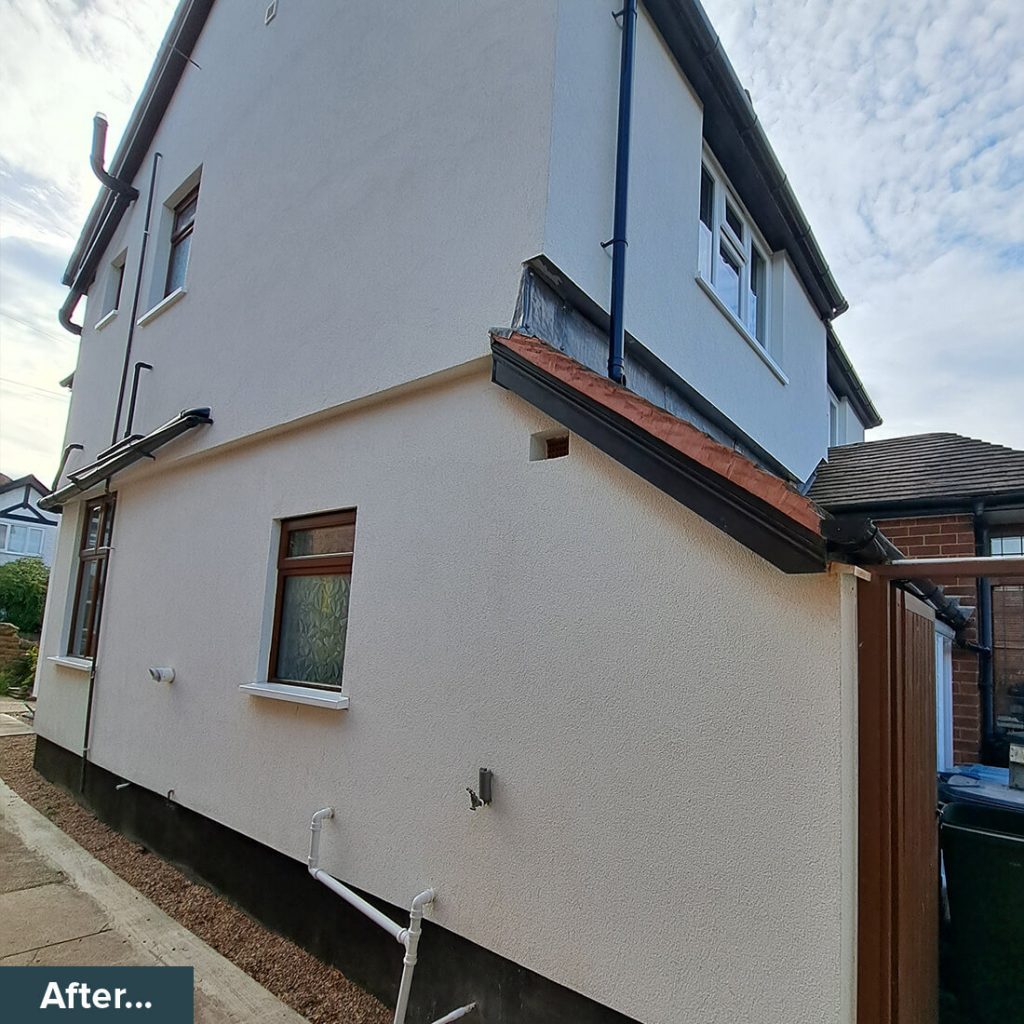

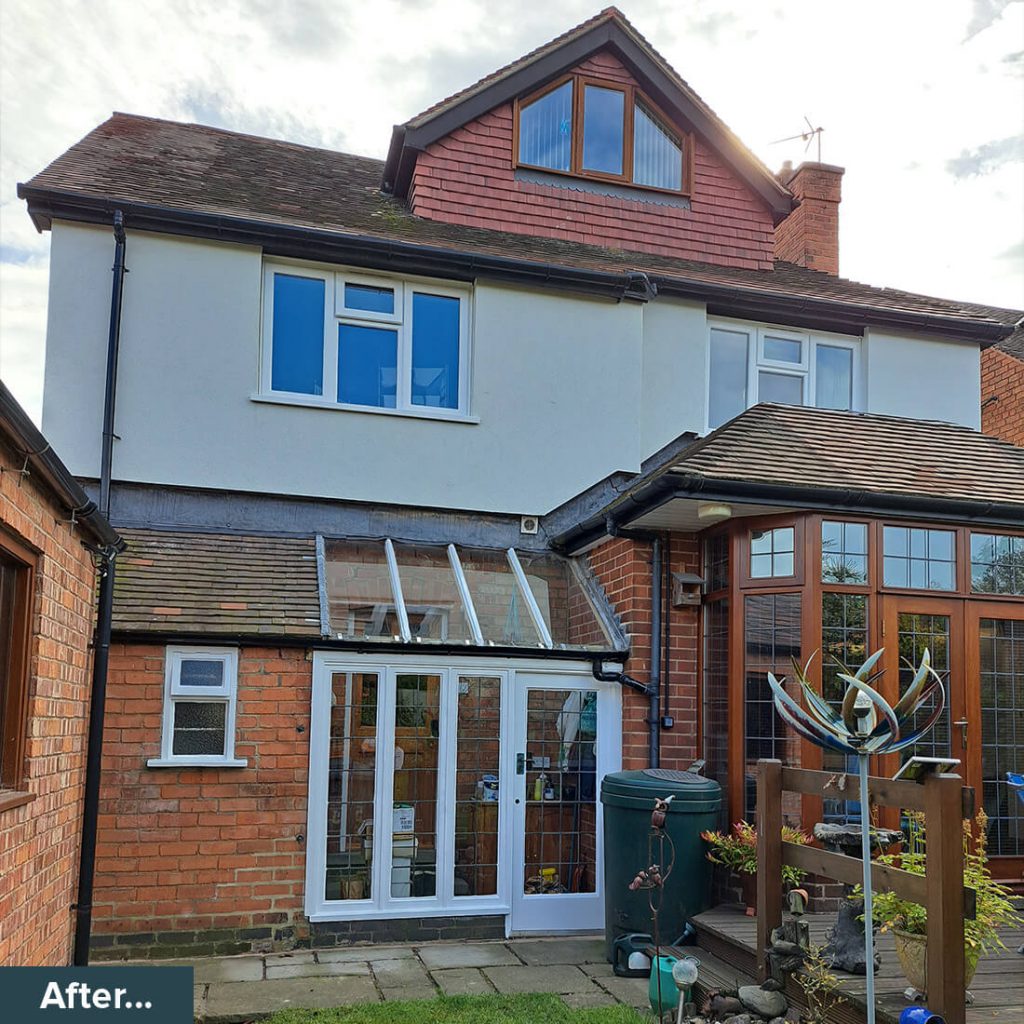

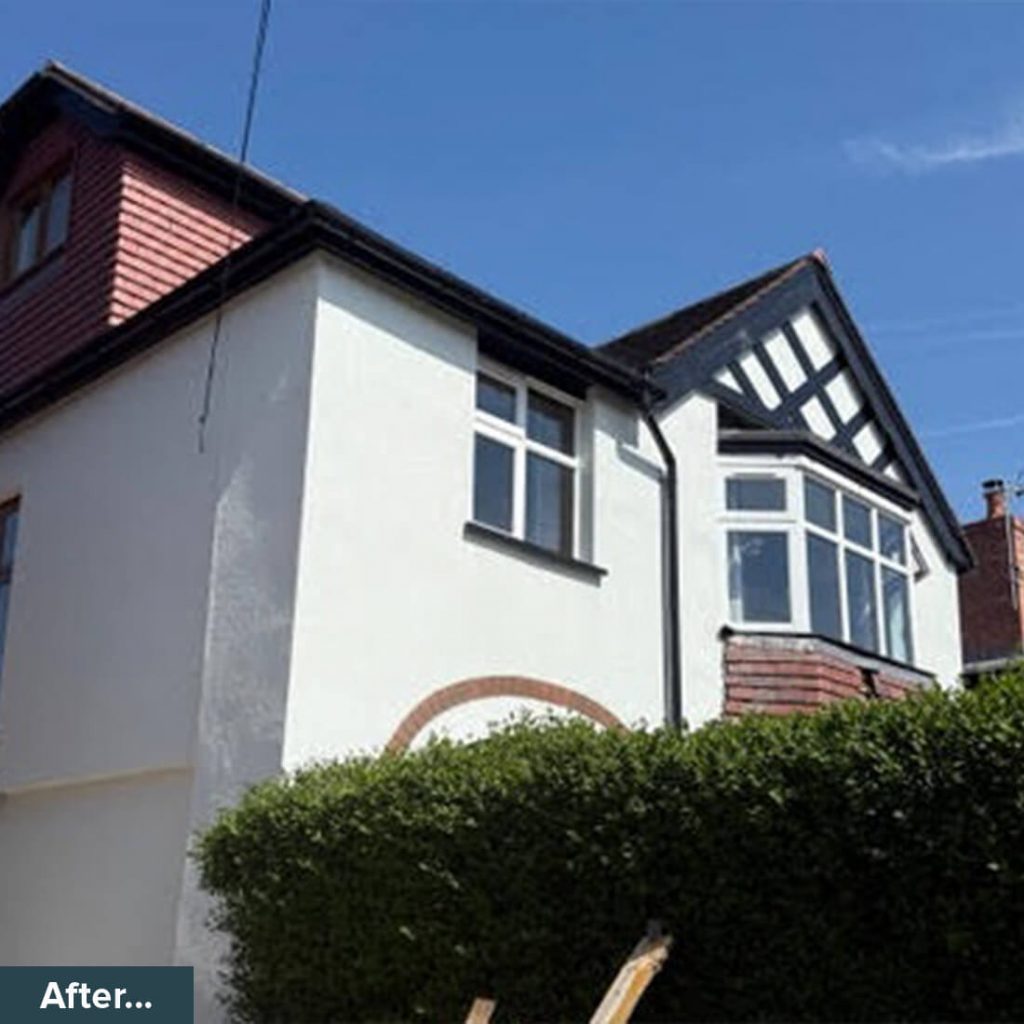

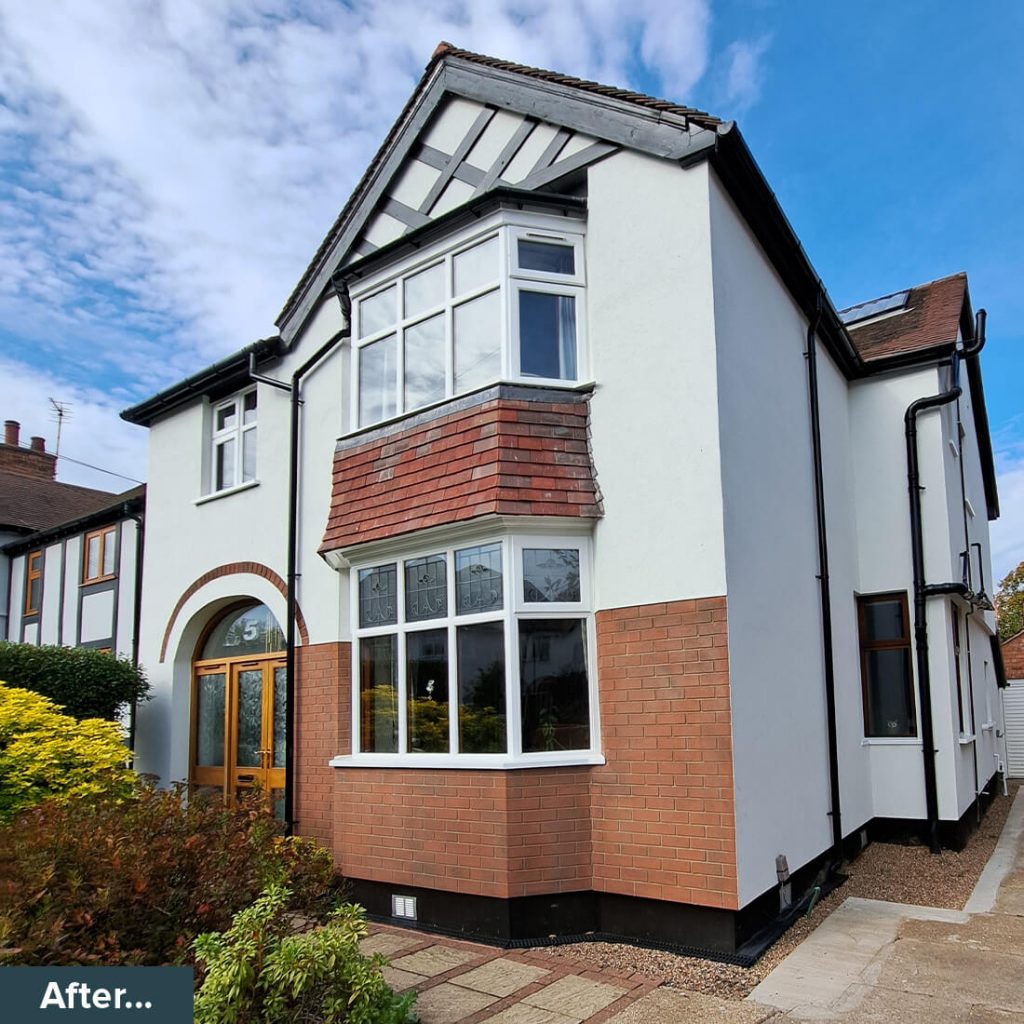

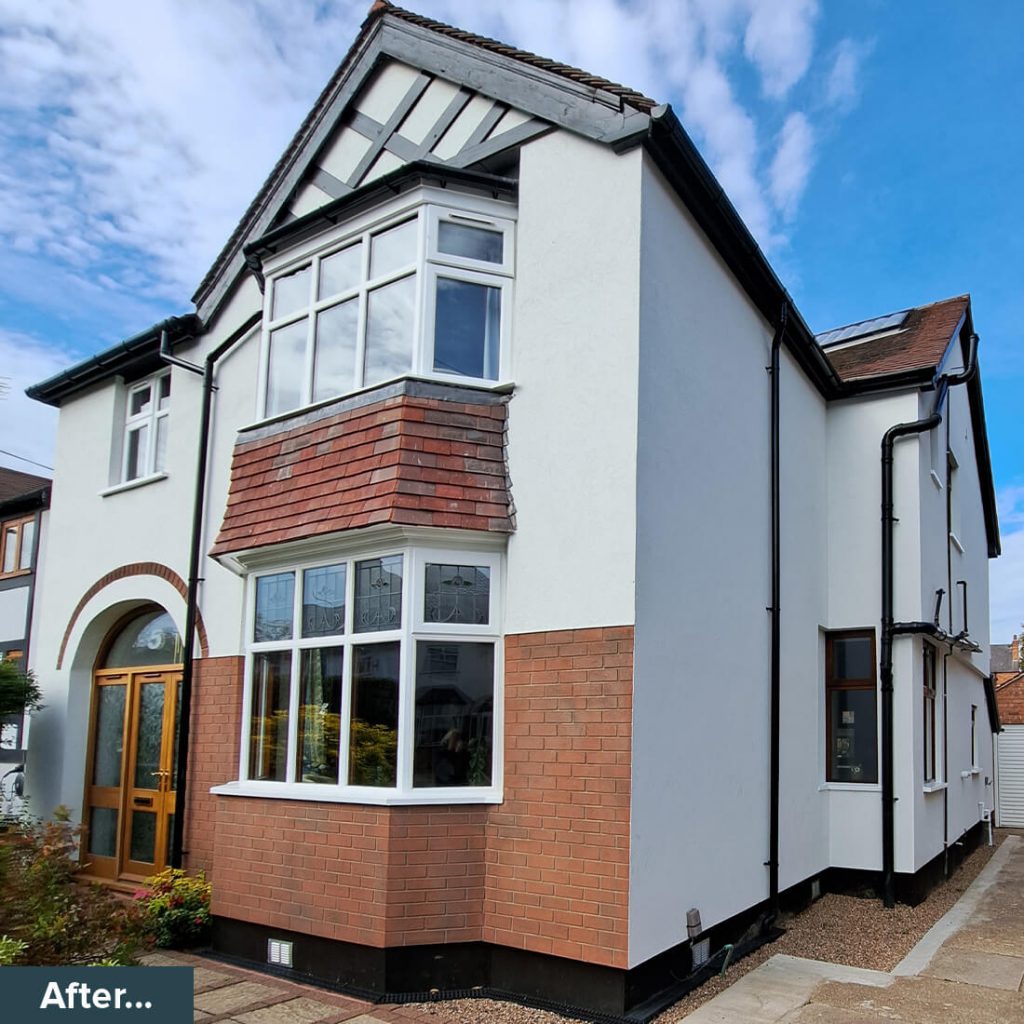

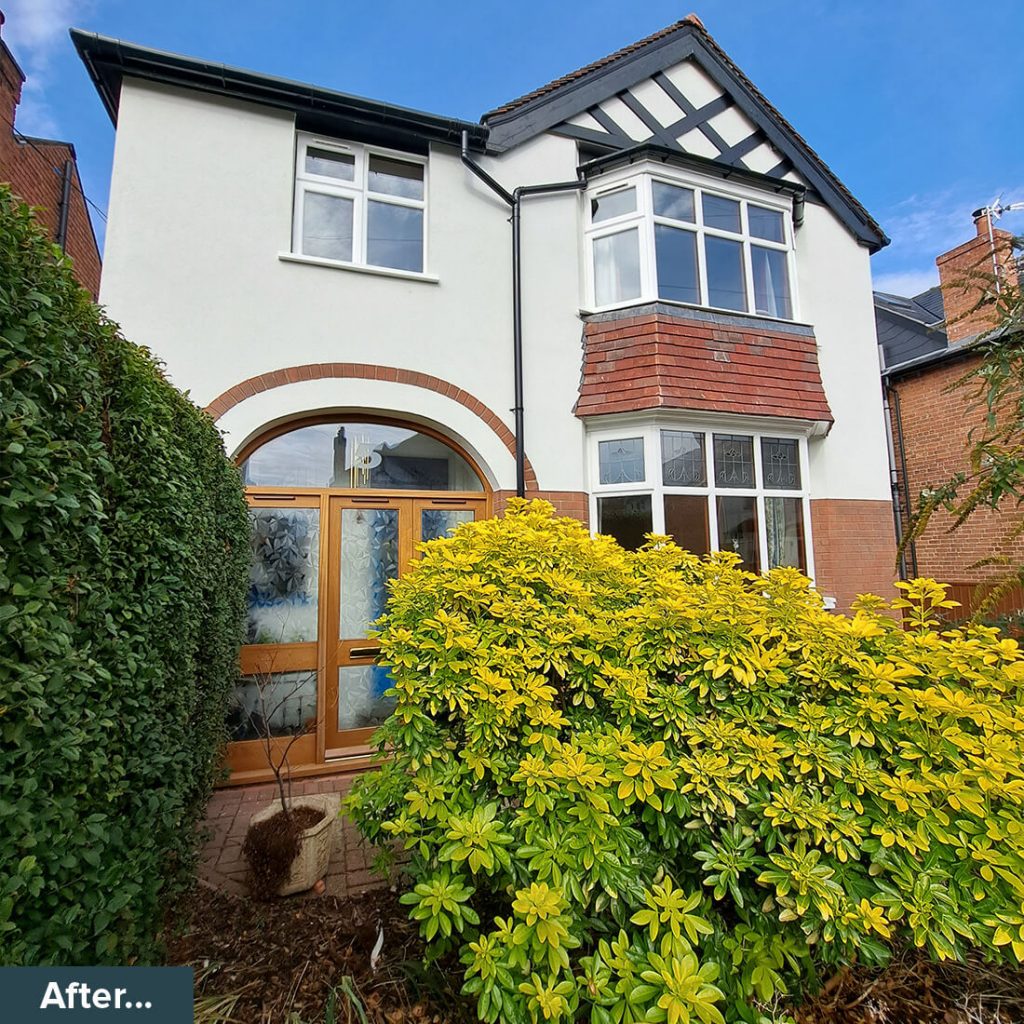

The completed property now benefits from dramatically improved energy efficiency, reduced heat loss, and a clean, contemporary appearance that complements its original design. The white render and contrasting brick-effect render finish gives a modern yet sympathetic aesthetic, while the upgraded insulation system delivers lasting comfort and protection.
The collaboration between Westville and Gil Schalom stands as an excellent example of how well-planned retrofit projects can breathe new life into existing homes.
Following the work on this property, residents are set to save an estimated £1,630 annually on their energy bills.*
The total estimated Carbon Dioxide savings amounts to around 1.7 tonnes each year.* It takes 28 tree seedlings ten years to remove that amount of CO2 from the atmosphere!**
Client delight is our delight
The homeowner was thrilled with the transformation, noting how the house now feels consistently warm and comfortable throughout the year. The project also received glowing feedback from the architect Gil, who highlighted the high standard of workmanship and the team’s collaborative approach.
